2018 TRAIL-EZE TE12TCF42A
Stock: 022406 | Location: RONKONKOMA |
Manufacturer: TRAIL-EZE | composition: Steel |
suspension: Spring |
Detailed Specs
1DASFK110JP022406
23460
Spring
42.4166666666667
102
22.5
Aluminum
Single
Steel
Description
You’re viewing a 2018 Traileze TE12TCF42A Trailer #022406 that measures 42.5′ in Length and 102″ in Width. This trailer was a backup in our fleet and saw minimal use. Well-maintained and ready to work. Don’t miss out on a great deal!
GVW GROSS – 23,460
Capacity in 20′ – 12,000LBS
Overall Length – 42′ – 5″
Width (98 .75″ inside container guides) – 8′ – 6″
Swing Clearance – 82″
King Pin Setting – 16
AXLES: 25,000 # with oil seal hubs
BRAKES: 12 1/4 ” X 7 1/2″ with outboard drums, ABS, auto slack and spring brakes
WHEELS: 6.75″ X 17.5″ hub piloted
TIRES: 235/75R17.5 18 Ply radials rated @ 5675 # each
SUSPENSION: Spring
ELECTRICAL: ICC D.O.T. standard sealed beam system with mid-ship turn signal. Grote Ultra-Blue harnesses with LED lights
TIE DOWNS: (8) D-rings / (3) strap winches / (6) pin locks
PARK STANDS: Pin drop

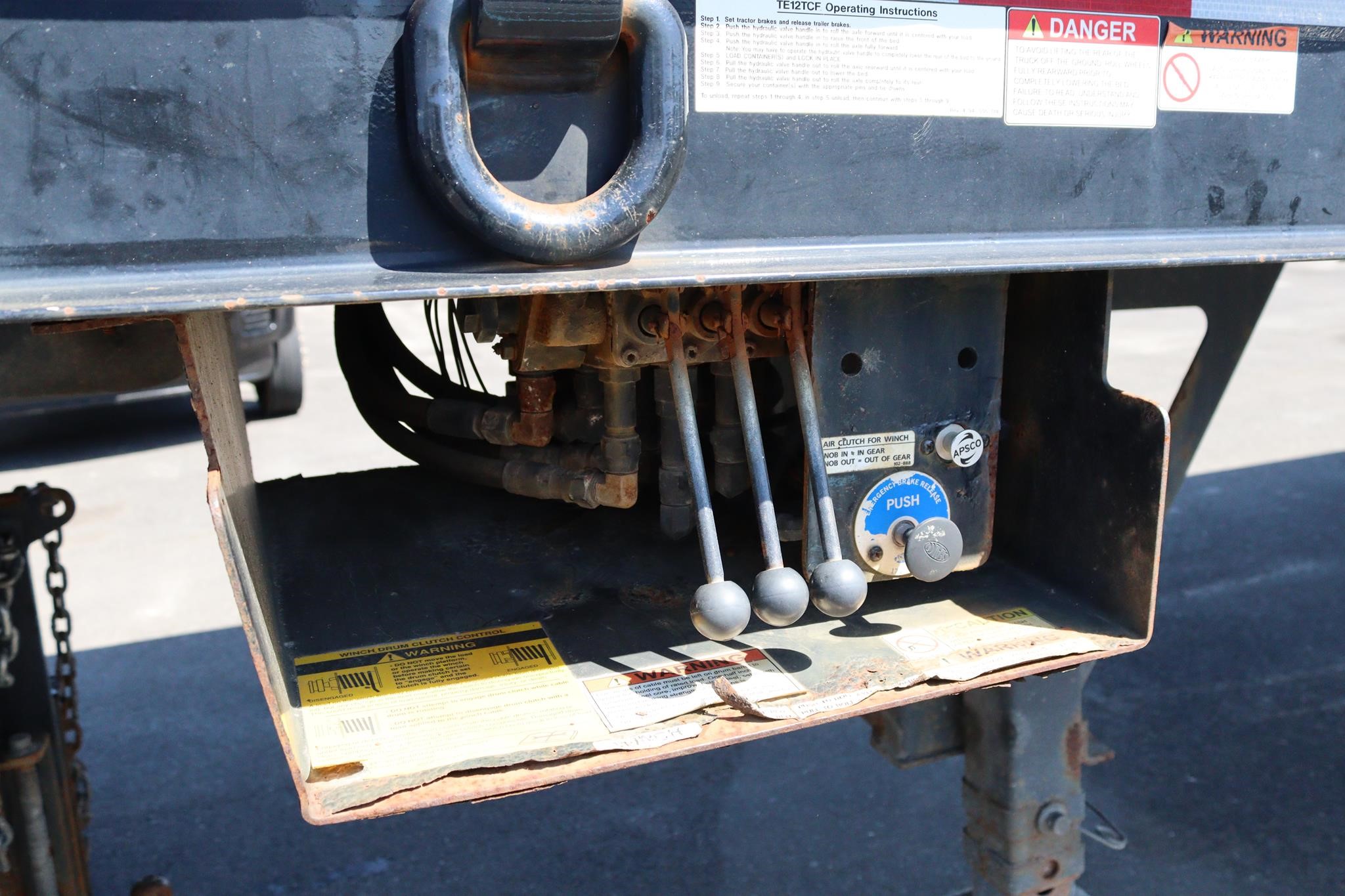

WINCH: 12,000 Lb. at front of upper deck with wireless remote control
PLATFORM: All steel decking includes a 3 / 8″ x 4″ x 7″ bed enclosure as a container guide and a cable return roller at the rear. Cable trough full length of main deck
FINISH PROCESS: White metal blast using aluminum oxide pretreatment eradicates 100% of the dirt, rust, mill scale and other contaminates. PPG Epoxy primer applied over entire trailer. PPG Polyurethane topcoat applied over entire trailer
FRAME: Manufactured I-Beams cambered for rated payload
